Propulsion systems

Full Propulsion delivery based on mission requirements. Stellar Exploration provides development and design of the propulsion system according to customer and mission requirements, including:

– Analysis

– Testing

– Filling operations before launch​

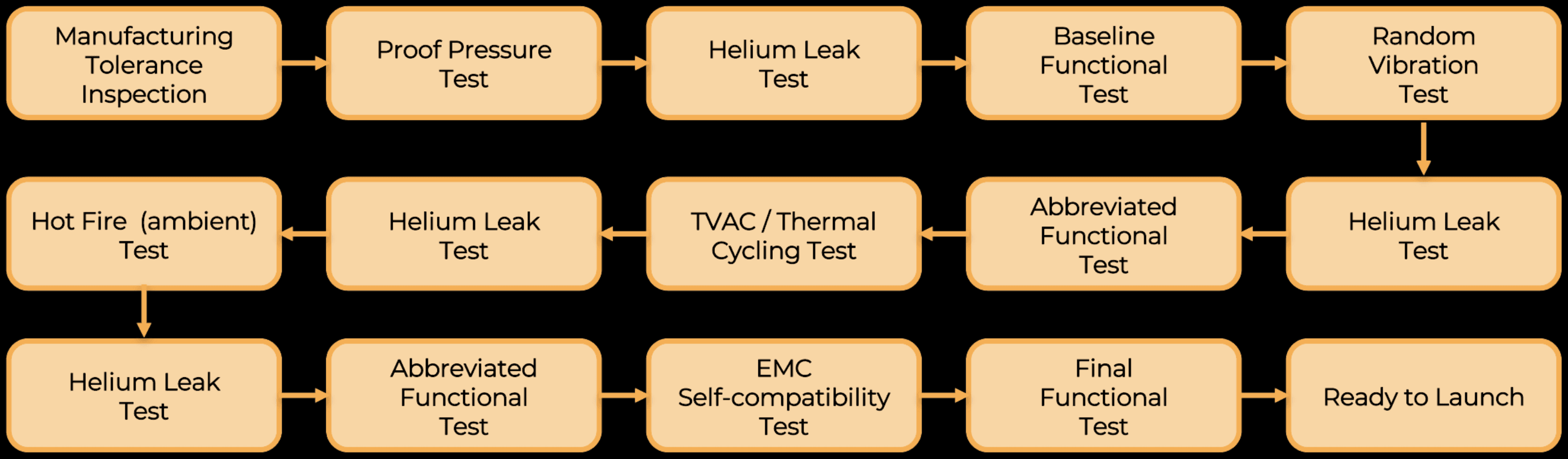

Flight Propulsion Test Campaign​


Propulsion - Warm Gas propulsion

The Warm Gas propulsion system is an efficient, robust solution designed for small satellites, including CubeSats.​
– Non-toxic, non-corrosive, and non-flammable, making it safe to handle and store​
– Isp = 60 - 70 sec​

Deorbit

​– Capable of deorbiting maneuvers, allowing controlled re-entry or deorbiting at the end of the mission to meet space debris mitigation requirements (5 years)​

Reaction control, proximity and precise maneuvers

– Provides 6-DOF reaction control, enabling precise maneuvers in all directions. ​

Pearl White 1 & 2 missions

– 6U spacecraft in LEO​
– Manufacturing, cleaning, welding integration of components (tank, heating chamber, and thrusters)​

Rogue space missions

– 1000 Ns of impulse, 40 mN thrusters

Plywood
Plywood
Plywood

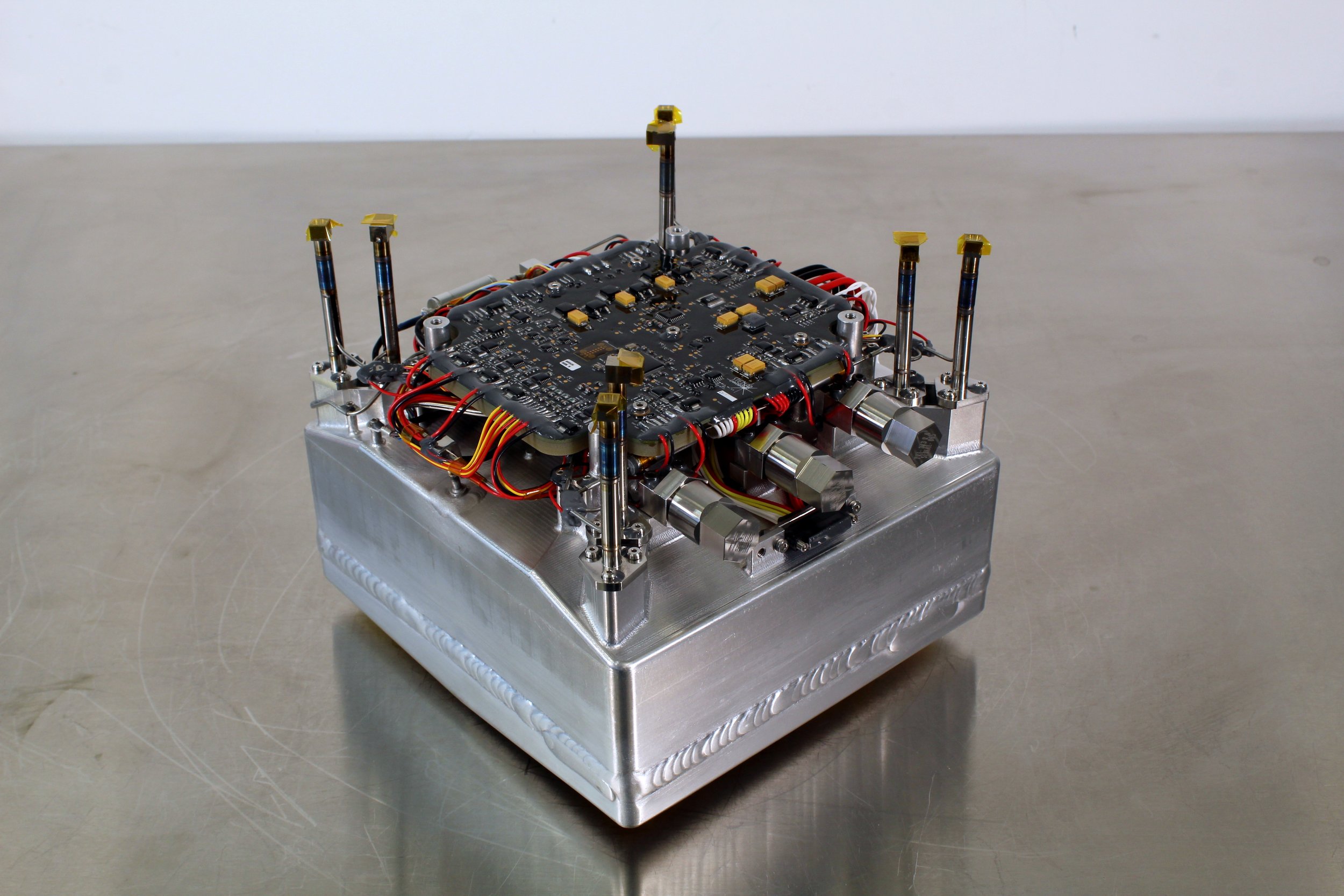

Propulsion - Monopropellant propulsion​

NASA - CAPSTONE mission

– Conformal (cubical) tank​
– Δv 140 m/s​
– Electric gear pump pressurization​
– Delivery in one year since ATP​
– Verifying the calculated orbital stability planned for the Lunar Gateway space station​

EG-3 mission

– Conformal (cubical) tank​
– Δv 260 m/s​
– Electric gear pump pressurization​
– Most Rapid Altitude Change Ever Accomplished By A Nano-Satellite & 1.5 degree inclination change​

Jackal 1, 2, 3 and 4

– ESPA-class​
– Mass of propellant ~50 kg​
– 12 thrusters are located around the vehicle to support 6-DOF propulsion for rendezvous and proximity operations ​
– Transporter 10 and 12; Jackal 4 will launch on a Falcon 9 in April 2025

Monopropellant thruster properties​

Propellant ​

Hydrazine (HPH)​

Thrust​

0.25 N / 0.5 N / 1 N​

Steady state Isp​

200 sec (measured 208 - 217 sec)​

Pulsed Isp​

175 sec​


Propulsion - Bipropellant propulsion

Harley

– 6U CubeSat​
– Dual mode (monoprop & biprop)​
– High-degree of miniaturization​
– Electric gear pump pressurization​

MSO

– ESPA-class​
– Dual mode (monoprop & biprop)​
– Δv 3200 m/s​
– Optimized tank volume vs. mass vs. achieved Δv​
– Electric gear pump pressurization

Bipropellant thruster properties

Fuel​

Hydrazine (HPH)​

Oxidiser​

NTO (MON-3)​

Thrust​

5 N​

Steady state Isp​

285 sec​

Pulsed Isp​

230 - 260 sec​
