Electric Power System​

Full EPS delivery based on mission requirements​. Completely customized battery power delivery system designed uniquely on requirements provided by the customer​.

High customization in terms of power and capacity​

– In-house developed battery made of individual cell modules​

– Each battery rigorously mechanically and electrically tested before flight​

– Maximum reliability ensured via high QC standards

Each custom battery includes smart monitoring system and can be equipped with optional features to perfectly suit every spacecraft

– Communication bus available to provide battery status to the spacecraft ​

– Ability to automatically reboot whole spacecraft in case the spacecraft stops responding​

– Advanced self monitoring features built in to ensure reliable and safe operation of the battery and power delivery monitoring​

– Solar charging including MPPT for best charging performance

Avenzor
Avenzor
Avenzor

The Stellar Exploration Battery Assembly is a space-grade, COTS lithium-ion battery pack and battery management system compatible with standard 28V small satellite buses.​

– Power mass ratio 130-200 Wh/kg​

– Voltage, current, temperature telemetry (over CAN or RS422)​

– Flight heritage + 30 satellites

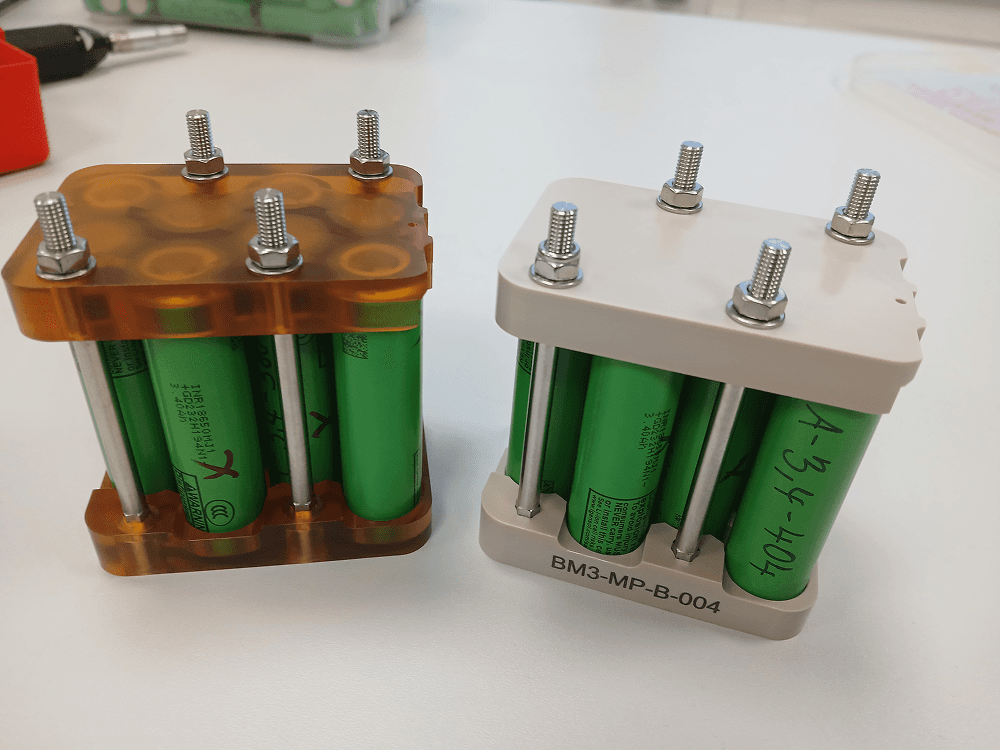

Single Module specifications​

Missions

Cells​

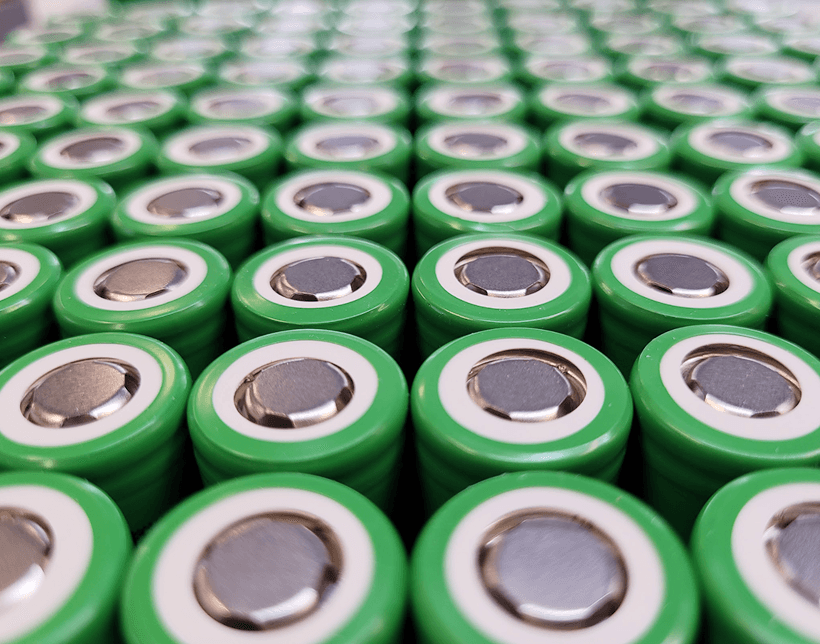

8x 18650 Li-ion (LG MJ1)​

APEX – Commercial and Space force missions

Mass​

480 g​

ReOrbit – UKKO

Rated capacity​

3.5 Ah​

Reflex – SIGI

Nominal Output Voltage​

28 V​

NASA – Mars Stationary Orbiter

Output Current​

8 A​

ICEYE – SAR constellation

Nominal Input Voltage​

40 V​

ESA – Perla – new type of Battery and PDU system

Input Current​

1.75 - 3.5 A​

Development for ESA FLPP
